TRU-PURE™ Cap Weld End
The Cap Weld End is a sanitary fitting used to permanently seal the end of a process tube in high-purity piping systems.
Featuring a weld end connection, this cap is designed for permanent, crevice-free closure, ensuring a hygienic barrier that supports clean-in-place (CIP) and sterilize-in-place (SIP) operations. Manufactured to ASME BPE standards and available in SF1 and SF4 surface finishes, it provides excellent internal smoothness and corrosion resistance.
The DT4.1.5-1 Cap Weld End is ideal for biopharmaceutical, life sciences, and other ultra-clean applications where sterile line termination is required.

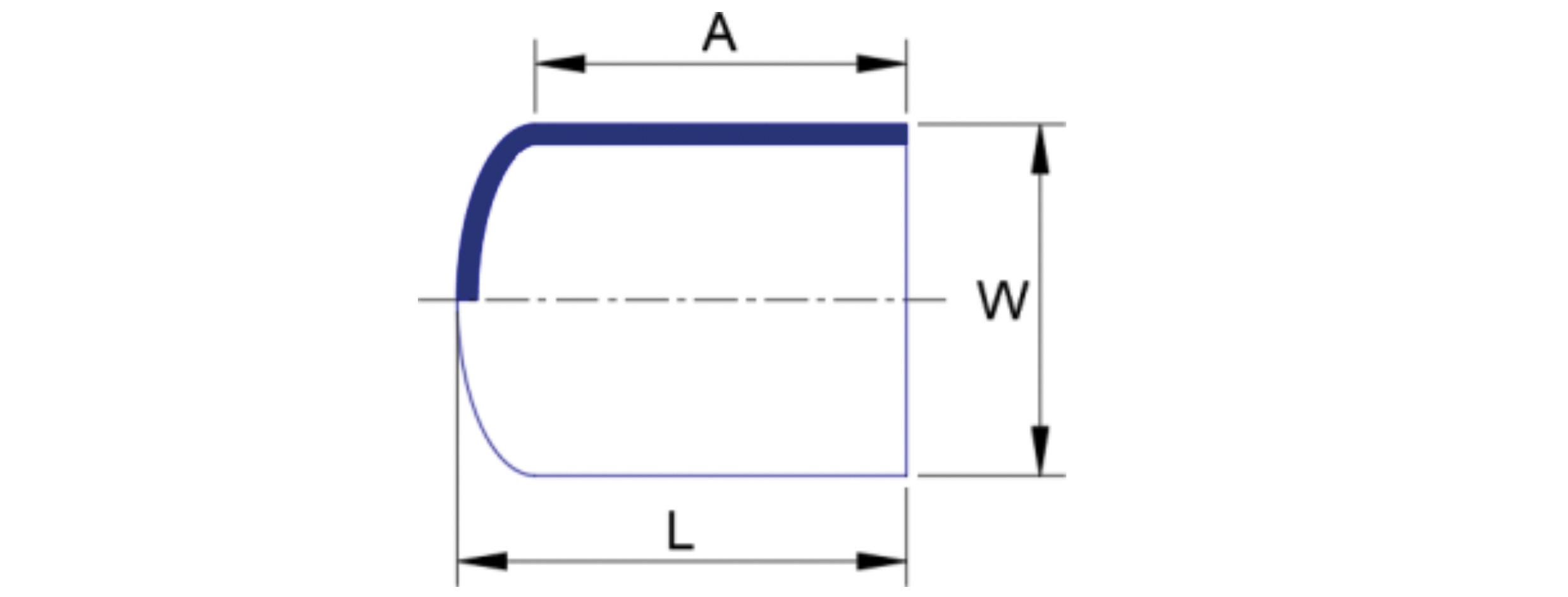

Full Product Range – Technical Information
| OD(A) | L | A | Part # | ||
| inch | mm | mm | mm | SF1 | SF4 |
| 1/2 | 12.7 | 44.5 | 38.10 | FBP-011-1C0010-62050150 | FBP-014-1C0040-62050150 |
| 3/4 | 19.05 | 46.0 | 38.10 | FBP-011-1C0010-62075150 | FBP-014-1C0040-62075150 |
| 1 | 25.4 | 47.6 | 38.10 | FBP-011-1C0010-62100150 | FBP-014-1C0040-62100150 |
| 1.5 | 38.1 | 52.4 | 38.10 | FBP-011-1C0010-62150150 | FBP-014-1C0040-62150150 |
| 2 | 50.8 | 63.5 | 38.10 | FBP-011-1C0010-62200150 | FBP-014-1C0040-62200150 |
| 2.5 | 63.5 | 71.4 | 38.10 | FBP-011-1C0010-62250150 | FBP-014-1C0040-62250150 |
| 3 | 76.2 | 73.0 | 44.45 | FBP-011-1C0010-62300175 | FBP-014-1C0040-62300175 |
| 4 | 101.6 | 82.6 | 50.80 | FBP-011-1C0010-62400200 | FBP-014-1C0040-62400200 |
| 6 | 152.4 | 120.7 | 63.50 | FBP-011-1C0010-62600250 | FBP-014-1C0040-62600250 |
