TRU-PURE™ Short-Outlet Clamp Joint Tee
The Short-Outlet Clamp Joint Tee is a compact, high-purity fitting designed to facilitate quick-connect branching in sanitary piping systems.
Featuring a short outlet and clamp connections, this tee allows for easy disassembly and maintenance, making it ideal for applications where space is limited and frequent cleaning is required. Manufactured in accordance with ASME BPE standards and available in SF1 and SF4 surface finishes, it ensures smooth internal surfaces for excellent cleanability and flow control.
The short-outlet design minimizes dead leg areas, supporting hygienic performance in biopharmaceutical and life sciences processes.
Full Product Range – Technical Information

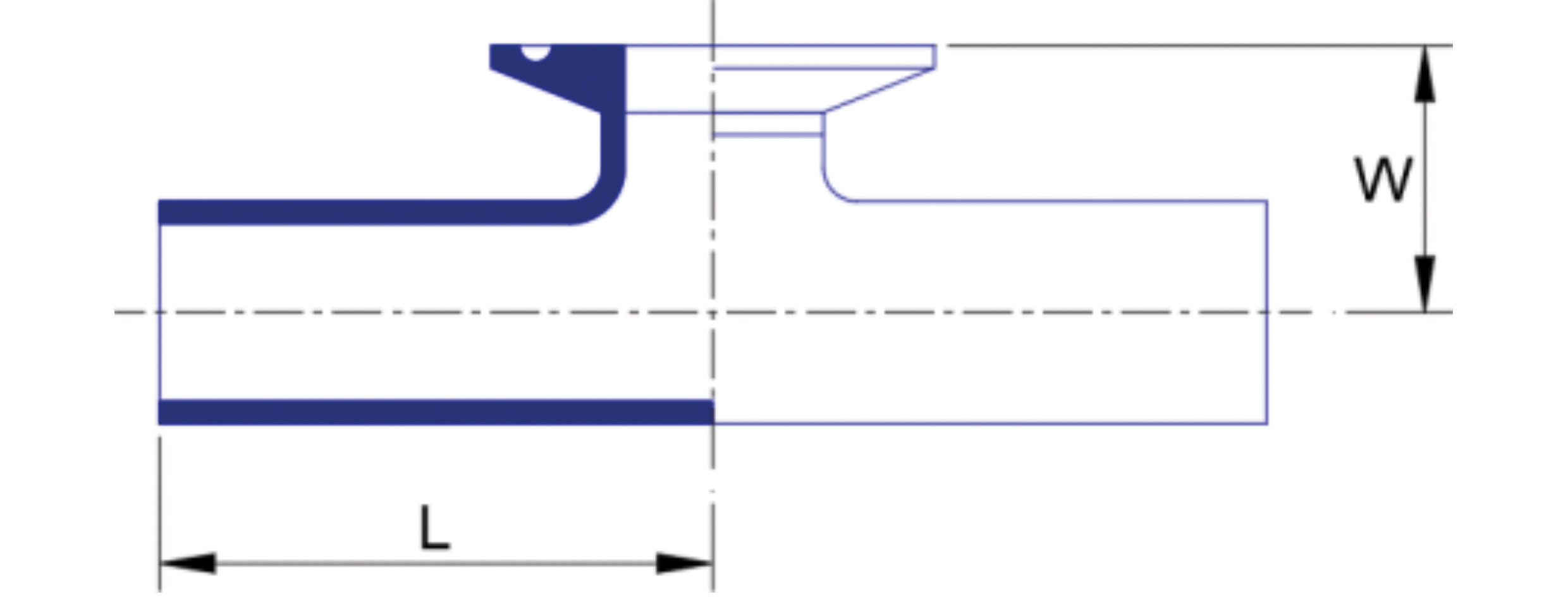

| Size | L | W | Part # | ||||
| inch | mm | inch | mm | inch | mm | SF1 | SF4 |
| 1/2 | 12.7 | 1.875 | 47.63 | 1.00 | 25.4 | FBP-011-6T1C10-62050065 | FBP-014-6T1C40-62050065 |
| 3/4 | 19.05 | 2.000 | 50.80 | 1.125 | 28.58 | FBP-011-6T1C10-62075065 | FBP-014-6T1C40-62075065 |
| 1 | 25.4 | 2.215 | 53.98 | 1.125 | 28.58 | FBP-111-6T1C10-62100065 | FBP-114-6T1C40-62100065 |
| 1.5 | 38.1 | 2.375 | 60.33 | 1.375 | 34.93 | FBP-111-6T1C10-62150065 | FBP-114-6T1C40-62150065 |
| 2 | 50.8 | 2.875 | 73.03 | 1.625 | 41.28 | FBP-111-6T1C10-62200065 | FBP-114-6T1C40-62200065 |
| 2.5 | 63.5 | 3.125 | 79.38 | 1.875 | 47.63 | FBP-111-6T1C10-62250065 | FBP-114-6T1C40-62250065 |
| 3 | 76.2 | 3.375 | 85.73 | 2.125 | 53.98 | FBP-111-6T1C10-62300065 | FBP-114-6T1C40-62300065 |
| 4 | 101.6 | 4.125 | 104.78 | 2.750 | 69.85 | FBP-111-6T1C10-62400083 | FBP-114-6T1C40-62400083 |
| 6 | 152.4 | 5.625 | 142.88 | 4.625 | 117.48 | FBP-111-6T1C10-62600109 | FBP-114-6T1C40-62600109 |
