TRU-PURE™ Reducing Tee Weld Ends
The Reducing Tee Weld Ends are sanitary fittings designed to connect a larger main process line to a smaller branch line with permanent weld joints.
Engineered to ASME BPE standards, this reducing tee provides a seamless transition between different pipe sizes while maintaining hygienic integrity. All three ports are weld ends, ensuring a secure, crevice-free connection ideal for clean-in-place (CIP) and sterilize-in-place (SIP) systems.
Available in SF1 and SF4 surface finishes, the DT4.1.2-6 supports efficient flow distribution and is particularly suited for biopharmaceutical and high-purity fluid processing applications where precision and cleanliness are critical.

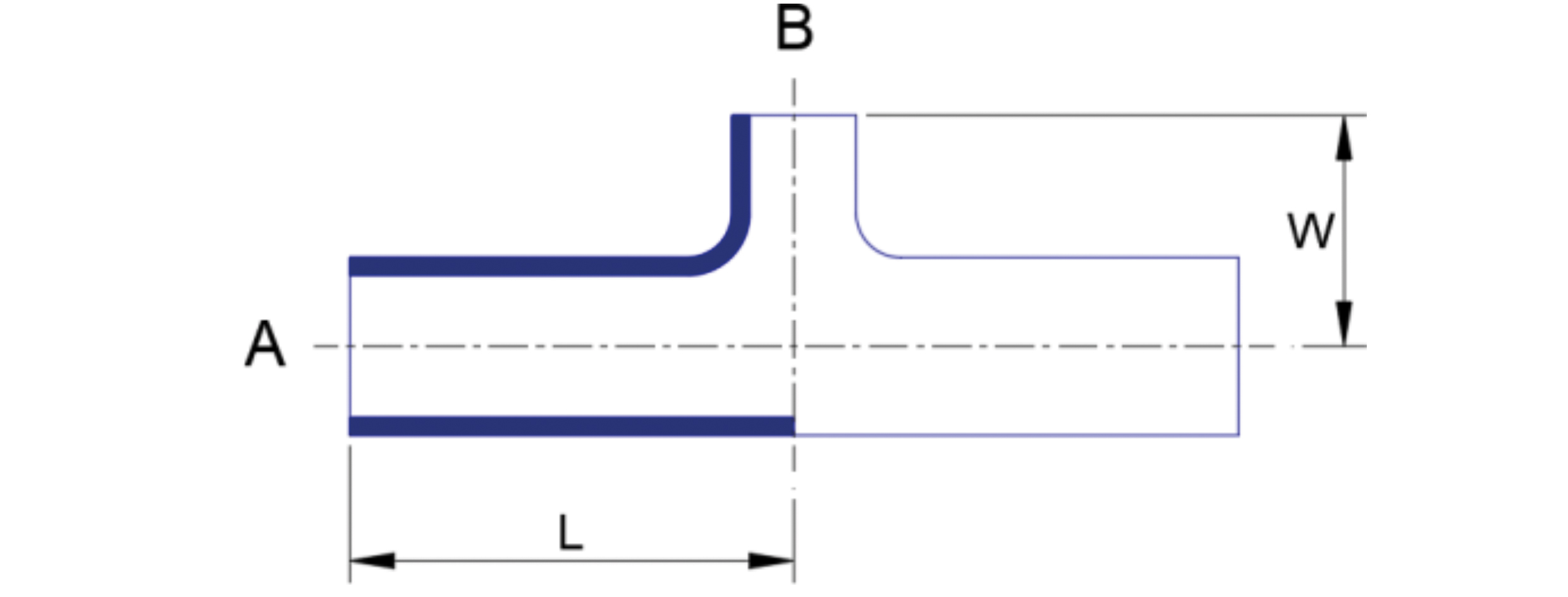

Full Product Range – Technical Information
| Size(A) | Size(B) | L | W | Part # | |||||
| inch | mm | inch | mm | inch | mm | inch | mm | SF1 | SF4 | 3/4 | 19.05 | 1/2 | 12.7 | 2.000 | 50.8 | 2.000 | 50.80 | FBP-011-3T0010-62075050 | FBP-014-3T0040-62075050 |
| 1 | 25.4 | 1/2 | 12.7 | 2.215 | 53.98 | 2.215 | 53.98 | FBP-111-3T0010-62100050 | FBP-114-3T0040-62100050 |
| 1 | 25.4 | 3/4 | 19.05 | 2.215 | 53.98 | 2.215 | 53.98 | FBP-111-3T0010-62100075 | FBP-114-3T0040-62100075 |
| 1.5 | 38.1 | 1/2 | 12.7 | 2.375 | 60.33 | 2.375 | 60.33 | FBP-111-3T0010-62150050 | FBP-114-3T0040-62150050 |
| 1.5 | 38.1 | 3/4 | 19.05 | 2.375 | 60.33 | 2.375 | 60.33 | FBP-111-3T0010-62150075 | FBP-114-3T0040-62150075 |
| 1.5 | 38.1 | 1 | 25.4 | 2.375 | 60.33 | 2.375 | 60.33 | FBP-111-3T0010-62150100 | FBP-114-3T0040-62150100 |
| 2 | 50.8 | 1/2 | 12.7 | 2.875 | 73.03 | 2.625 | 66.68 | FBP-111-3T0010-62200050 | FBP-114-3T0040-62200050 |
| 2 | 50.8 | 3/4 | 19.05 | 2.875 | 73.03 | 2.625 | 66.68 | FBP-111-3T0010-62200075 | FBP-114-3T0040-62200075 |
| 2 | 50.8 | 1 | 25.4 | 2.875 | 73.03 | 2.625 | 66.68 | FBP-111-3T0010-62200100 | FBP-114-3T0040-62200100 |
| 2 | 50.8 | 1.5 | 38.1 | 2.875 | 73.03 | 2.875 | 73.03 | FBP-111-3T0010-62200150 | FBP-114-3T0040-62200150 |
| 2.5 | 63.5 | 1/2 | 12.7 | 3.125 | 79.38 | 2.875 | 73.03 | FBP-111-3T0010-62250050 | FBP-114-3T0040-62250050 |
| 2.5 | 63.5 | 3/4 | 19.05 | 3.125 | 79.38 | 2.875 | 73.03 | FBP-111-3T0010-62250075 | FBP-114-3T0040-62250075 |
| 2.5 | 63.5 | 1 | 25.4 | 3.125 | 79.38 | 2.875 | 73.03 | FBP-111-3T0010-62250100 | FBP-114-3T0040-62250100 |
| 2.5 | 63.5 | 1.5 | 38.1 | 3.125 | 79.38 | 2.875 | 73.03 | FBP-111-3T0010-62250150 | FBP-114-3T0040-62250150 |
| 2.5 | 63.5 | 2 | 50.8 | 3.125 | 79.38 | 2.875 | 73.03 | FBP-111-3T0010-62250200 | FBP-114-3T0040-62250200 |
| 3 | 76.2 | 1/2 | 12.7 | 3.375 | 85.73 | 3.125 | 79.38 | FBP-111-3T0010-62300050 | FBP-114-3T0040-62300050 |
| 3 | 76.2 | 3/4 | 19.05 | 3.375 | 85.73 | 3.125 | 79.38 | FBP-111-3T0010-62300075 | FBP-114-3T0040-62300075 |
| 3 | 76.2 | 1 | 25.4 | 3.375 | 85.73 | 3.125 | 79.38 | FBP-111-3T0010-62300100 | FBP-114-3T0040-62300100 |
| 3 | 76.2 | 1.5 | 38.1 | 3.375 | 85.73 | 3.125 | 79.38 | FBP-111-3T0010-62300150 | FBP-114-3T0040-62300150 |
| 3 | 76.2 | 2 | 50.8 | 3.375 | 85.73 | 3.125 | 79.38 | FBP-111-3T0010-62300200 | FBP-114-3T0040-62300200 |
| 3 | 76.2 | 2.5 | 63.5 | 3.375 | 85.73 | 3.125 | 79.38 | FBP-111-3T0010-62300250 | FBP-114-3T0040-62300250 |
| 4 | 101.6 | 1/2 | 12.7 | 4.125 | 104.78 | 3.625 | 92.08 | FBP-111-3T0010-62400050 | FBP-114-3T0040-62400050 |
| 4 | 101.6 | 3/4 | 19.05 | 4.125 | 104.78 | 3.625 | 92.08 | FBP-111-3T0010-62400075 | FBP-114-3T0040-62400075 |
| 4 | 101.6 | 1 | 25.4 | 4.125 | 104.78 | 3.625 | 92.08 | FBP-111-3T0010-62400100 | FBP-114-3T0040-62400100 |
| 4 | 101.6 | 1.5 | 38.1 | 4.125 | 104.78 | 3.625 | 92.08 | FBP-111-3T0010-62400150 | FBP-114-3T0040-62400150 |
| 4 | 101.6 | 2 | 50.4 | 4.125 | 104.78 | 3.625 | 92.08 | FBP-111-3T0010-62400200 | FBP-114-3T0040-62400200 |
| 4 | 101.6 | 2.5 | 63.5 | 4.125 | 104.78 | 3.625 | 92.08 | FBP-111-3T0010-62400250 | FBP-114-3T0040-62400250 |
| 4 | 101.6 | 3 | 76.2 | 4.125 | 104.78 | 3.625 | 92.08 | FBP-111-3T0010-62400300 | FBP-114-3T0040-62400300 |
| 6 | 152.4 | 3 | 76.2 | 5.625 | 142.88 | 4.875 | 123.83 | FBP-111-3T0010-62600300 | FBP-114-3T0040-62600300 |
| 6 | 152.4 | 4 | 76.2 | 5.625 | 142.88 | 5.125 | 130.18 | FBP-111-3T0010-62600400 | FBP-114-3T0040-62600400 |
