TRU-PURE™ Instrument Tee Weld Ends
The Instrument Tee Weld Ends is a precision-engineered fitting designed to integrate instrumentation ports into sanitary process lines.
Featuring a reduced branch outlet specifically sized for sensors or monitoring devices, all ends are configured for permanent welding to maintain a crevice-free, hygienic seal. Built to ASME BPE standards and available in SF1 and SF4 surface finishes, this tee ensures excellent internal smoothness for cleanability and sterile process compatibility.
It is ideal for applications in the pharmaceutical and biotech industries where accurate process monitoring and hygienic integrity are essential.

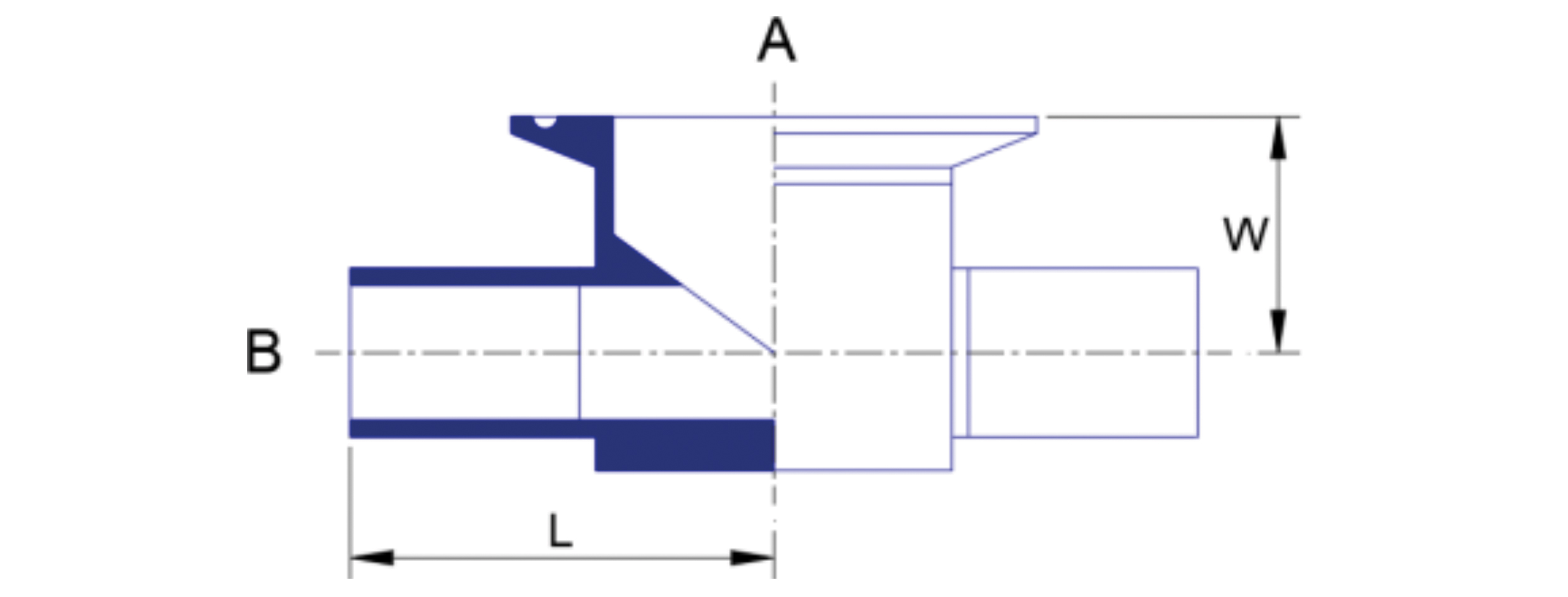

Full Product Range – Technical Information
| <Size | <L | R | <Part # | |||
| inch | mm | inch | mm | mm | SF1 | SF4 |
| 1/2 | 12.7 | 3 | 76.2 | 28.58 | FBP-011-9E0010-62050065 | FBP-014-9E0040-62050065 |
| 3/4 | 19.05 | 3 | 76.2 | 28.58 | FBP-011-9E0010-62075065 | FBP-014-9E0040-62075065 |
| 1 | 25.4 | 3 | 76.2 | 38.10 | FBP-111-9E0010-62100065 | FBP-114-9E0040-62100065 |
| 1.5 | 38.1 | 3.75 | 95.3 | 57.15 | FBP-111-9E0010-62150065 | FBP-114-9E0040-62150065 |
| 2 | 50.8 | 4.75 | 120.65 | 76.20 | FBP-111-9E0010-62200065 | FBP-114-9E0040-62200065 |
| 2.5 | 63.5 | 5.5 | 139.70 | 95.25 | FBP-111-9E0010-62250065 | FBP-114-9E0040-62250065 |
| 3 | 76.2 | 6.25 | 158.75 | 114.30 | FBP-111-9E0010-62300065 | FBP-114-9E0040-62300065 |
| 4 | 101.6 | 8 | 203.20 | 152.40 | FBP-111-9E0010-62400083 | FBP-114-9E0040-62400083 |
| 6 | 152.4 | 11.5 | 292.10 | 228.60 | FBP-111-9E0010-62600109 | FBP-114-9E0040-62600109 |
