TRU-PURE™ ASME BPE TUBING

SME BPE Tubes and Fittings are precision-engineered components designed for high and ultra-high purity applications in industries like biopharmaceuticals. These products include Ultra High Purity Stainless Steel Tubing and Fittings with SF4 electropolished finishes, as well as High Purity Hygienic variants with SF1 mechanically polished surfaces.

Manufactured in compliance with ASME BPE, ASTM, and ASME specifications.

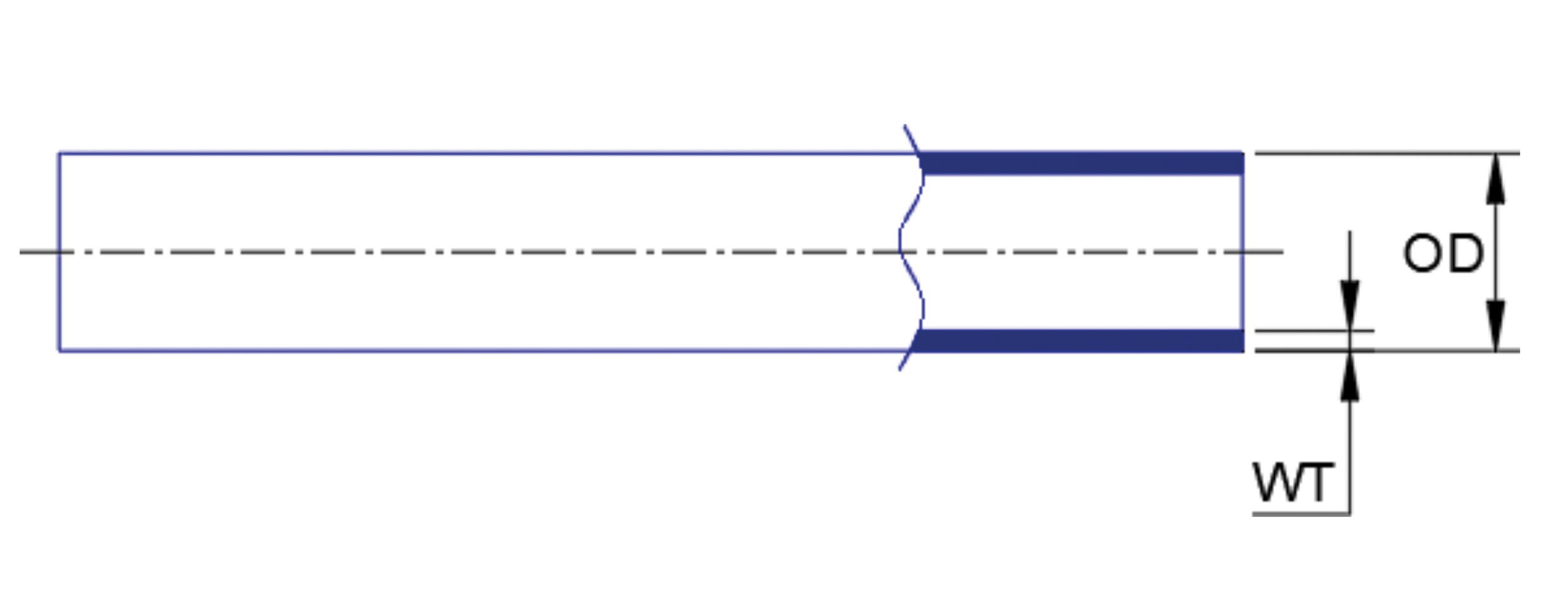

Tubes are dimensioned per ASME BPE Part DT standards, with outer diameters ranging from 1/2″ to 6″ and precise wall thicknesses.

Download product datasheet

Full Product Range – Technical Information

ASME/ASTM OD WT Length Part #
inch mm inch mm ft m SF1 SF4
SA213/A269A270-S2 1/4 6.35 0.035 0.89 20 6.096 BPE-011-62025035 BPE-014-62025035
SA213/A269A270-S2 3/8 9.53 0.035 0.89 20 6.096 BPE-011-62038035 BPE-014-62038035
SA213/A269A270-S2 1/2 12.7 0.065 1.65 20 6.096 BPE-011-62050065 BPE-014-62050065
SA213/A269A270-S2 3/4 19.05 0.065 1.65 20 6.096 BPE-011-62075065 BPE-014-62075065
SA249/A269A270-S2 1 25.4 0.065 1.65 20 6.096 BPE-111-62100065 BPE-114-62100065
SA249/A269A270-S2 1.5 38.1 0.065 1.65 20 6.096 BPE-111-62150065 BPE-114-62150065
SA249/A269A270-S2 2 50.8 0.065 1.65 20 6.096 BPE-111-62200065 BPE-114-62200065
SA249/A269A270-S2 2.5 63.5 0.065 1.65 20 6.096 BPE-111-62250065 BPE-114-62250065
SA249/A269A270-S2 3 76.2 0.065 1.65 20 6.096 BPE-111-62300065 BPE-114-62300065
SA249/A269A270-S2 4 101.6 0.083 2.11 20 6.096 BPE-111-62400083 BPE-114-62400083
SA249/A269A270-S2 6 152.4 0.109 2.77 20 6.096 BPE-111-62600109 BPE-114-62600109
