TRU-PURE™ Eccentric Reducer Weld Ends (Type B)
The Eccentric Reducer Weld Ends Type B is a specialized sanitary fitting designed for applications requiring precise weld alignment with enhanced drainability. Similar to Type A in maintaining a flat bottom for effective horizontal flow.
The Type B version features a counterbore on the larger end to match the wall thickness of the smaller tube, facilitating smoother orbital welding and reducing weld mismatch.
Manufactured to ASME BPE standards and offered in SF1 and SF4 surface finishes, this reducer ensures superior cleanability and hygienic integrity, making it ideal for high-purity systems in the biopharmaceutical and life sciences industries.
Full Product Range – Technical Information

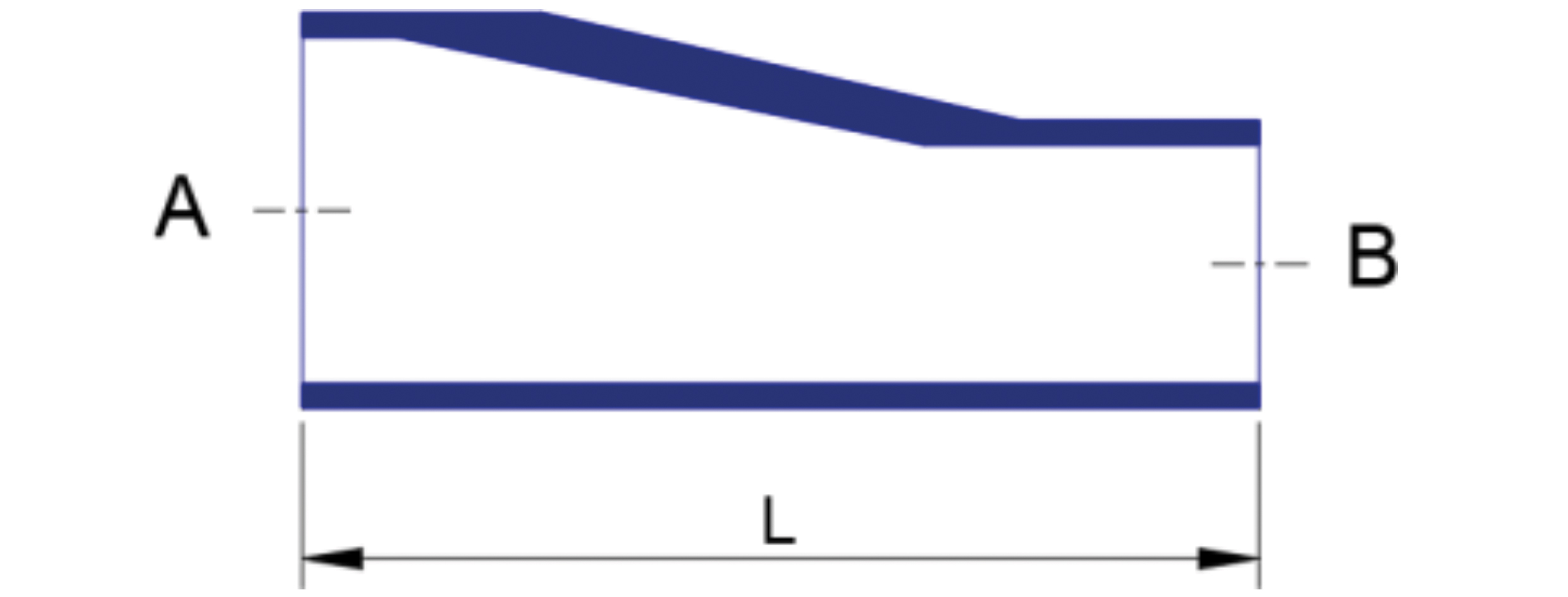

| Size(A) | Size(B) | L | Part # | ||||
| inch | mm | inch | mm | inch | mm | SF1 | SF4 |
| 3/4 | 19.05 | 1/2 | 12.7 | 2.125 | 53.98 | FBP-011-3R001B-62075050 | FBP-014-3R004B-62075050 |
| 1 | 25.4 | 1/2 | 12.7 | 2.500 | 63.5 | FBP-011-3R001B-62100050 | FBP-014-3R004B-62100050 |
| 1 | 25.4 | 3/4 | 19.05 | 2.125 | 53.98 | FBP-011-3R001B-62100075 | FBP-014-3R004B-62100075 |
| 1.5 | 38.1 | 3/4 | 19.05 | 3.000 | 76.2 | FBP-011-3R001B-62150075 | FBP-014-3R004B-62150075 |
| 1.5 | 38.1 | 1 | 25.4 | 2.500 | 63.5 | FBP-011-3R001B-62150100 | FBP-014-3R004B-62150100 |
| 2 | 50.8 | 1 | 38.1 | 3.375 | 85.73 | FBP-011-3R001B-62200100 | FBP-014-3R004B-62200100 |
| 2 | 50.8 | 1.5 | 38.1 | 2.500 | 63.5 | FBP-011-3R001B-62200150 | FBP-014-3R004B-62200150 |
| 2.5 | 63.5 | 1.5 | 50.8 | 3.375 | 85.73 | FBP-011-3R001B-62250150 | FBP-014-3R004B-62250150 |
| 2.5 | 63.5 | 2 | 38.1 | 2.500 | 63.5 | FBP-011-3R001B-62250200 | FBP-014-3R004B-62250200 |
| 3 | 76.2 | 1.5 | 50.8 | 4.250 | 107.95 | FBP-011-3R001B-62300150 | FBP-014-3R004B-62300150 |
| 3 | 76.2 | 2 | 50.8 | 3.375 | 85.73 | FBP-011-3R001B-62300200 | FBP-014-3R004B-62300200 |
| 3 | 76.2 | 2.5 | 63.5 | 2.625 | 66.68 | FBP-011-3R001B-62300250 | FBP-014-3R004B-62300250 |
| 4 | 101.6 | 2 | 50.8 | 5.125 | 130.18 | FBP-011-3R001B-62400200 | FBP-014-3R004B-62400200 |
| 4 | 101.6 | 2.5 | 63.5 | 4.250 | 107.95 | FBP-011-3R001B-62400250 | FBP-014-3R004B-62400250 |
| 4 | 101.6 | 3 | 76.2 | 3.875 | 98.43 | FBP-011-3R001B-62400300 | FBP-014-3R004B-62400300 |
| 6 | 152.4 | 3 | 76.2 | 7.250 | 184.15 | FBP-011-3R001B-62600300 | FBP-014-3R004B-62600300 |
| 6 | 152.4 | 4 | 101.6 | 5.625 | 142.88 | FBP-011-3R001B-62600400 | FBP-014-3R004B-62600400 |
