TRU-PURE™ Eccentric Reducer Weld/Clamp End (Type A)
The Eccentric Reducer Weld/Clamp End Type A is a sanitary fitting designed to connect dissimilar pipe sizes while maintaining a flat bottom for optimal drainability in horizontal installations.
This Type A configuration features a weld end on one side for permanent, hygienic joining and a tri-clamp end on the other for quick and tool-free disassembly. Ideal for applications where space, cleanliness, and accessibility are priorities, it meets ASME BPE standards and is available in SF1 and SF4 surface finishes.
The eccentric design helps prevent fluid pooling, making it especially suitable for CIP/SIP processes in biopharmaceutical and high-purity systems.
Full Product Range – Technical Information

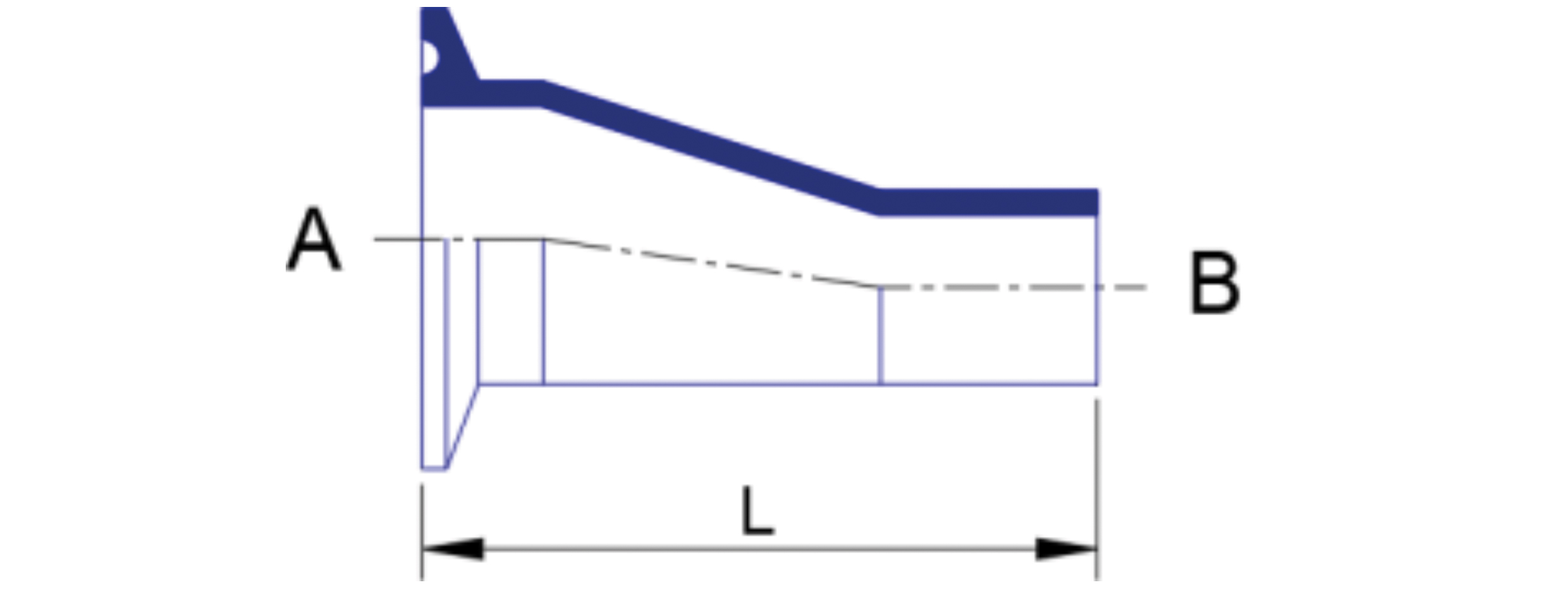

| Size(A) | Size(B) | L | Part # | ||||
| inch | mm | inch | mm | inch | mm | SF1 | SF4 |
| 3/4 | 19.05 | 1/2 | 12.7 | 3.125 | 79.38 | FBP-011-8R2C1B-62075050 | FBP-014-8R2C4B-62075050 |
| 1 | 25.4 | 1/2 | 12.7 | 3.500 | 88.9 | FBP-011-8R2C1B-62100050 | FBP-014-8R2C4B-62100050 |
| 1 | 25.4 | 3/4 | 19.05 | 3.125 | 79.38 | FBP-011-8R2C1B-62100075 | FBP-014-8R2C4B-62100075 |
| 1.5 | 38.1 | 3/4 | 19.05 | 4.000 | 101.6 | FBP-011-8R2C1B-62150075 | FBP-014-8R2C4B-62150075 |
| 1.5 | 38.1 | 1 | 25.4 | 3.500 | 88.9 | FBP-011-8R2C1B-62150100 | FBP-014-8R2C4B-62150100 |
| 2 | 50.8 | 1 | 38.1 | 4.375 | 111.13 | FBP-011-8R2C1B-62200100 | FBP-014-8R2C4B-62200100 |
| 2 | 50.8 | 1.5 | 38.1 | 3.500 | 88.9 | FBP-011-8R2C1B-62200150 | FBP-014-8R2C4B-62200150 |
| 2.5 | 63.5 | 1.5 | 50.8 | 4.375 | 111.13 | FBP-011-8R2C1B-62250150 | FBP-014-8R2C4B-62250150 |
| 2.5 | 63.5 | 2 | 38.1 | 3.500 | 88.9 | FBP-011-8R2C1B-62250200 | FBP-014-8R2C4B-62250200 |
| 3 | 76.2 | 1.5 | 50.8 | 5.250 | 133.35 | FBP-011-8R2C1B-62300150 | FBP-014-8R2C4B-62300150 |
| 3 | 76.2 | 2.0 | 50.8 | 4.375 | 111.13 | FBP-011-8R2C1B-62300200 | FBP-014-8R2C4B-62300200 |
| 3 | 76.2 | 2.5 | 63.5 | 3.625 | 92.08 | FBP-011-8R2C1B-62300250 | FBP-014-8R2C4B-62300250 |
| 4 | 101.6 | 2 | 50.8 | 6.250 | 158.75 | FBP-011-8R2C1B-62400200 | FBP-014-8R2C4B-62400200 |
| 4 | 101.6 | 2.5 | 63.5 | 5.375 | 136.53 | FBP-011-8R2C1B-62400250 | FBP-014-8R2C4B-62400250 |
| 4 | 101.6 | 3 | 76.2 | 5.000 | 127 | FBP-011-8R2C1B-62400300 | FBP-014-8R2C4B-62400300 |
| 6 | 152.4 | 3 | 76.2 | 8.500 | 215.9 | FBP-011-8R2C1B-62600300 | FBP-014-8R2C4B-62600300 |
| 6 | 152.4 | 4 | 101.6 | 7.000 | 177.8 | FBP-011-8R2C1B-62600400 | FBP-014-8R2C4B-62600400 |
