TRU-PURE™ Eccentric Reducer Clamp Ends (Type A)
The Eccentric Reducer Clamp Ends Type A is a sanitary fitting designed for horizontal piping systems requiring effective drainage and easy access.
With tri-clamp connections on both ends, this reducer allows for quick assembly and disassembly without tools, ideal for systems requiring frequent cleaning or maintenance.
The Type A eccentric design maintains a flat-bottom orientation, preventing fluid pooling and ensuring optimal flow in clean-in-place (CIP) and sterilize-in-place (SIP) processes. Built to ASME BPE standards and available in SF1 and SF4 surface finishes, it’s a reliable choice for biopharmaceutical, life sciences, and other high-purity applications.

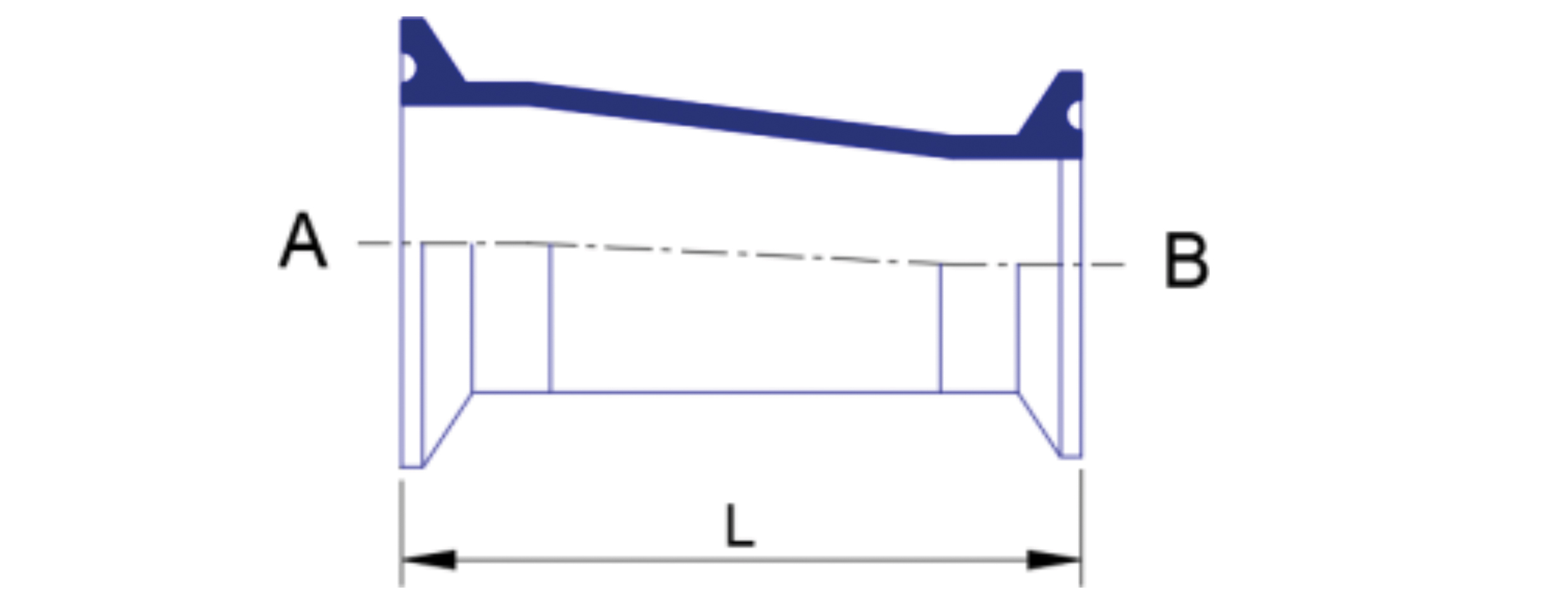

Full Product Range – Technical Information
| Size(A) | Size(B) | L | Part # | ||||
| inch | mm | inch | mm | inch | mm | SF1 | SF4 |
| 3/4 | 19.05 | 1/2 | 12.7 | 2.000 | 50.8 | FBP-011-3R2C1A-62075050 | FBP-014-3R2C4A-62075050 |
| 1 | 25.4 | 1/2 | 12.7 | 2.500 | 63.5 | FBP-111-3R2C1A-62100050 | FBP-114-3R2C4A-62100050 |
| 1 | 25.4 | 3/4 | 19.05 | 2.000 | 50.8 | FBP-111-3R2C1A-62100075 | FBP-114-3R2C4A-62100075 |
| 1.5 | 38.1 | 3/4 | 19.05 | 3.000 | 76.2 | FBP-111-3R2C1A-62150075 | FBP-114-3R2C4A-62150075 |
| 1.5 | 38.1 | 1.0 | 25.4 | 3.000 | 76.2 | FBP-111-3R2C1A-62150100 | FBP-114-3R2C4A-62150100 |
| 2 | 50.8 | 1.0 | 25.4 | 5.000 | 127 | FBP-111-3R2C1A-62200100 | FBP-114-3R2C4A-62200100 |
| 2 | 50.8 | 1.5 | 38.1 | 3.000 | 76.2 | FBP-111-3R2C1A-62200150 | FBP-114-3R2C4A-62200150 |
| 2.5 | 63.5 | 1.5 | 38.1 | 5.000 | 127 | FBP-111-3R2C1A-62250150 | FBP-114-3R2C4A-62250150 |
| 2.5 | 63.5 | 2.0 | 50.8 | 3.000 | 76.2 | FBP-111-3R2C1A-62250200 | FBP-114-3R2C4A-62250200 |
| 3 | 76.2 | 1.5 | 38.1 | 7.000 | 177.8 | FBP-111-3R2C1A-62300150 | FBP-114-3R2C4A-62300150 |
| 3 | 76.2 | 2.0 | 50.8 | 5.000 | 127 | FBP-111-3R2C1A-62300200 | FBP-114-3R2C4A-62300200 |
| 3 | 76.2 | 2.5 | 63.5 | 3.000 | 76.2 | FBP-111-3R2C1A-62300250 | FBP-114-3R2C4A-62300250 |
| 4 | 101.6 | 2.0 | 50.8 | 9.125 | 231.8 | FBP-111-3R2C1A-62400200 | FBP-114-3R2C4A-62400200 |
| 4 | 101.6 | 2.5 | 63.5 | 7.125 | 181 | FBP-111-3R2C1A-62400250 | FBP-114-3R2C4A-62400250 |
| 4 | 101.6 | 3.0 | 76.2 | 5.125 | 130.2 | FBP-111-3R2C1A-62400300 | FBP-114-3R2C4A-62400300 |
| 6 | 152.4 | 3.0 | 76.2 | 7.500 | 190.5 | FBP-111-3R2C1A-62600300 | FBP-114-3R2C4A-62600300 |
| 6 | 152.4 | 4.0 | 101.6 | 7.625 | 193.7 | FBP-111-3R2C1A-62600400 | FBP-114-3R2C4A-62600400 |
