TRU-PURE™ Concentric Reducer Weld Ends (Type A)
The Concentric Reducer Weld Ends Type A is a precision-engineered sanitary fitting designed to provide a smooth, axial transition between two different pipe sizes.
With weld ends on both sides, it ensures a permanent, crevice-free connection ideal for clean-in-place (CIP) and sterilize-in-place (SIP) applications. As a Type A concentric reducer, it maintains alignment along the centerline, minimizing flow disruption and turbulence.
Manufactured to ASME BPE standards and available in SF1 and SF4 surface finishes, this reducer supports high-purity performance in biopharmaceutical, life sciences, and other hygienic process systems where cleanliness, efficiency, and dimensional consistency are critical.
Full Product Range – Technical Information

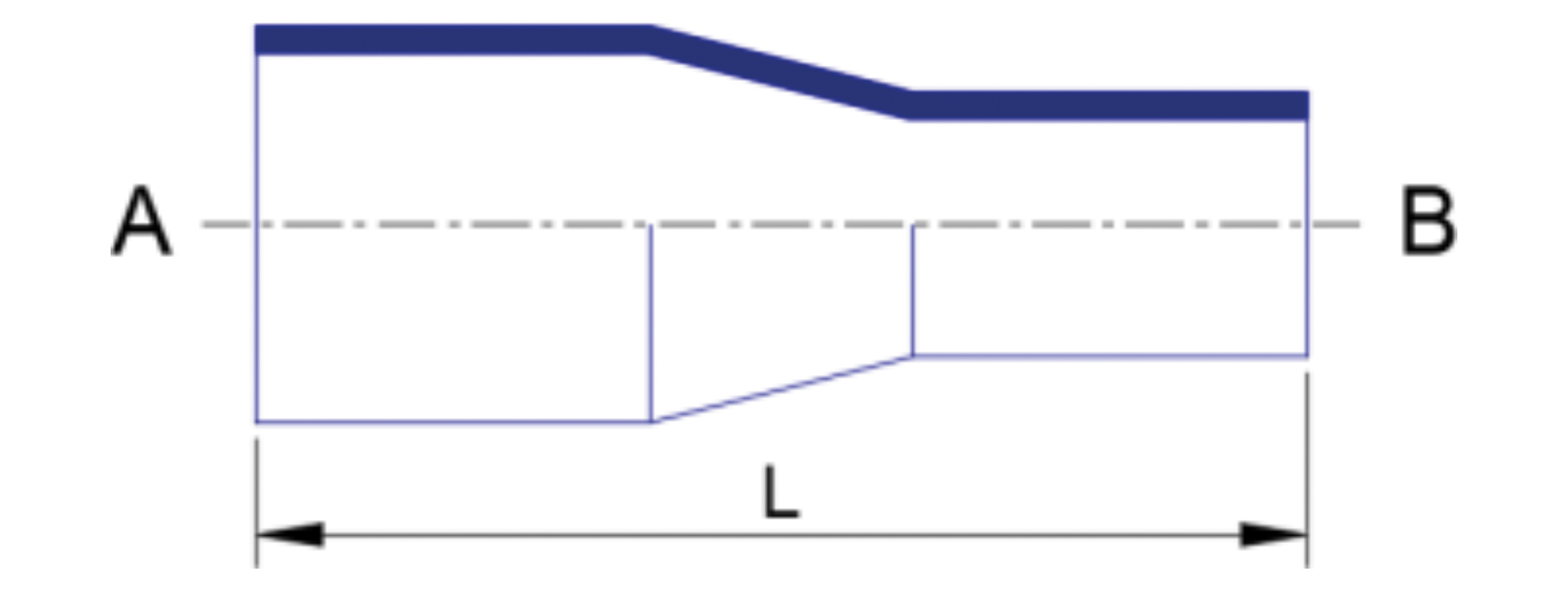

| Size(A) | Size(B) | L | Part # | ||||
| inch | mm | inch | mm | inch | mm | SF1 | SF4 |
| 3/4 | 19.05 | 1/2 | 12.7 | 4.000 | 101.6 | FBP-011-8R001A-62075050 | FBP-011-8R004A-62075050 |
| 1 | 25.4 | 1/2 | 12.7 | 4.500 | 114.3 | FBP-111-8R001A-62100050 | FBP-111-8R004A-62100050 |
| 1 | 25.4 | 3/4 | 19.05 | 4.000 | 101.6 | FBP-111-8R001A-62100075 | FBP-111-8R004A-62100075 |
| 1.5 | 38.1 | 3/4 | 19.05 | 5.000 | 127 | FBP-111-8R001A-62150075 | FBP-111-8R004A-62150075 |
| 1.5 | 38.1 | 1 | 25.4 | 5.000 | 127 | FBP-111-8R001A-62150100 | FBP-111-8R004A-62150100 |
| 2 | 50.8 | 1 | 25.4 | 7.250 | 184.2 | FBP-111-8R001A-62200100 | FBP-111-8R004A-62200100 |
| 2 | 50.8 | 1.5 | 38.1 | 5.250 | 133.4 | FBP-111-8R001A-62200150 | FBP-111-8R004A-62200150 |
| 2.5 | 63.5 | 1.5 | 38.1 | 7.250 | 184.2 | FBP-111-8R001A-62250150 | FBP-111-8R004A-62250150 |
| 2.5 | 63.5 | 2 | 50.8 | 5.500 | 139.7 | FBP-111-8R001A-62250200 | FBP-111-8R004A-62250200 |
| 3 | 76.2 | 1.5 | 38.1 | 9.250 | 235 | FBP-111-8R001A-62300150 | FBP-111-8R004A-62300150 |
| 3 | 76.2 | 2 | 50.8 | 7.500 | 190.5 | FBP-111-8R001A-62300200 | FBP-111-8R004A-62300200 |
| 3 | 76.2 | 2.5 | 63.5 | 5.500 | 139.7 | FBP-111-8R001A-62300250 | FBP-111-8R004A-62300250 |
| 4 | 101.6 | 2 | 50.8 | 11.750 | 298.5 | FBP-111-8R001A-62400200 | FBP-111-8R004A-62400200 |
| 4 | 101.6 | 2.5 | 63.5 | 9.750 | 247.7 | FBP-111-8R001A-62400250 | FBP-111-8R004A-62400250 |
| 4 | 101.6 | 3 | 76.2 | 7.750 | 196.9 | FBP-111-8R001A-62400300 | FBP-111-8R004A-62400300 |
| 6 | 152.4 | 3 | 76.2 | 10.000 | 254 | FBP-111-8R001A-62600300 | FBP-111-8R004A-62600300 |
| 6 | 152.4 | 4 | 101.6 | 10.000 | 254 | FBP-111-8R001A-62600400 | FBP-111-8R004A-62600400 |
