TRU-PURE™ Concentric Reducer Clamp Ends (Type B)
The Concentric Reducer Clamp Ends Type B is a hygienic fitting designed for centerline-aligned transitions between different tube sizes, with added weld compatibility for precision applications.

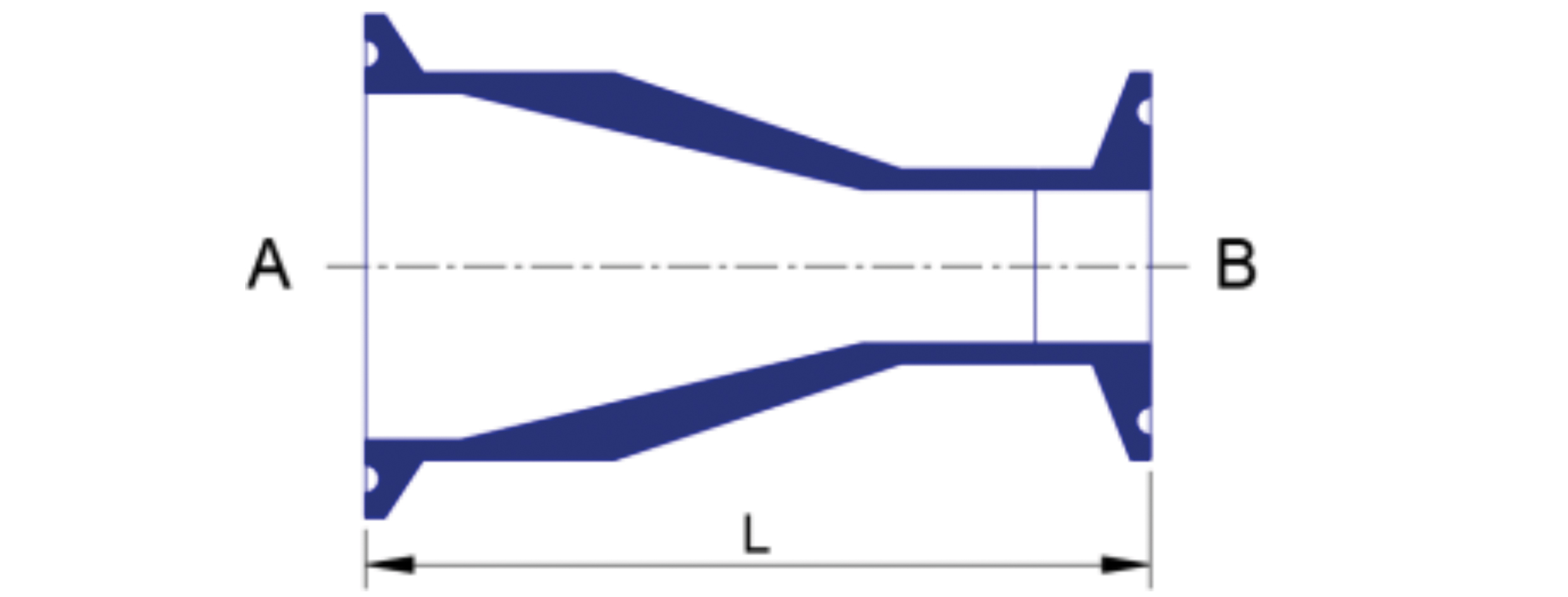

While both ends feature tri-clamp connections for easy assembly and disassembly, the Type B version includes a counterbore on the larger end to match the wall thickness of the smaller tube, ensuring proper alignment for orbital weld integration where needed.
Manufactured to ASME BPE standards and available in SF1 and SF4 surface finishes, this reducer delivers excellent cleanability, hygienic performance, and flexibility for high-purity process systems in the biopharmaceutical and life sciences industries.
Full Product Range – Technical Information
| Size(A) | Size(B) | L | Part # | ||||
| inch | mm | inch | mm | inch | mm | SF1 | SF4 |
| 3/4 | 19.05 | 1/2 | 12.7 | 3.125 | 79.38 | FBP-011-8R2C1B-62075050 | FBP-014-8R2C4B-62075050 |
| 1 | 25.4 | 1/2 | 12.7 | 3.500 | 88.9 | FBP-011-8R2C1B-62100050 | FBP-014-8R2C4B-62100050 |
| 1 | 25.4 | 3/4 | 19.05 | 3.125 | 79.38 | FBP-011-8R2C1B-62100075 | FBP-014-8R2C4B-62100075 |
| 1.5 | 38.1 | 3/4 | 19.05 | 4.000 | 101.6 | FBP-011-8R2C1B-62150075 | FBP-014-8R2C4B-62150075 |
| 1.5 | 38.1 | 1 | 25.4 | 3.500 | 88.9 | FBP-011-8R2C1B-62150100 | FBP-014-8R2C4B-62150100 |
| 2 | 50.8 | 1 | 38.1 | 4.375 | 111.13 | FBP-011-8R2C1B-62200100 | FBP-014-8R2C4B-62200100 |
| 2 | 50.8 | 1.5 | 38.1 | 3.500 | 88.9 | FBP-011-8R2C1B-62200150 | FBP-014-8R2C4B-62200150 |
| 2.5 | 63.5 | 1.5 | 50.8 | 4.375 | 111.13 | FBP-011-8R2C1B-62250150 | FBP-014-8R2C4B-62250150 |
| 2.5 | 63.5 | 2 | 38.1 | 3.500 | 88.9 | FBP-011-8R2C1B-62250200 | FBP-014-8R2C4B-62250200 |
| 3 | 76.2 | 1.5 | 50.8 | 5.250 | 133.35 | FBP-011-8R2C1B-62300150 | FBP-014-8R2C4B-62300150 |
| 3 | 76.2 | 2.0 | 50.8 | 4.375 | 111.13 | FBP-011-8R2C1B-62300200 | FBP-014-8R2C4B-62300200 |
| 3 | 76.2 | 2.5 | 63.5 | 3.625 | 92.08 | FBP-011-8R2C1B-62300250 | FBP-014-8R2C4B-62300250 |
| 4 | 101.6 | 2 | 50.8 | 6.250 | 158.75 | FBP-011-8R2C1B-62400200 | FBP-014-8R2C4B-62400200 |
| 4 | 101.6 | 2.5 | 63.5 | 5.375 | 136.53 | FBP-011-8R2C1B-62400250 | FBP-014-8R2C4B-62400250 |
| 4 | 101.6 | 3 | 76.2 | 5.000 | 127 | FBP-011-8R2C1B-62400300 | FBP-014-8R2C4B-62400300 |
| 6 | 152.4 | 3 | 76.2 | 8.500 | 215.9 | FBP-011-8R2C1B-62600300 | FBP-014-8R2C4B-62600300 |
| 6 | 152.4 | 4 | 101.6 | 7.000 | 177.8 | FBP-011-8R2C1B-62600400 | FBP-014-8R2C4B-62600400 |
