TRU-PURE™ Ferrule A
Ferrule Type A is a sanitary clamp-end fitting designed to provide a secure, hygienic connection point in high-purity process systems. This ferrule features a straight, unflanged design that allows it to be permanently welded onto process tubing, creating a smooth transition to a tri-clamp interface.
Compliant with ASME BPE standards and available in both SF1 and SF4 surface finishes, Ferrule Type A ensures cleanability, dimensional accuracy, and reliable performance in clean-in-place (CIP) and sterilize-in-place (SIP) operations.
It is widely used in biopharmaceutical, life sciences, and food-grade applications where sterile, tool-free connections are essential.

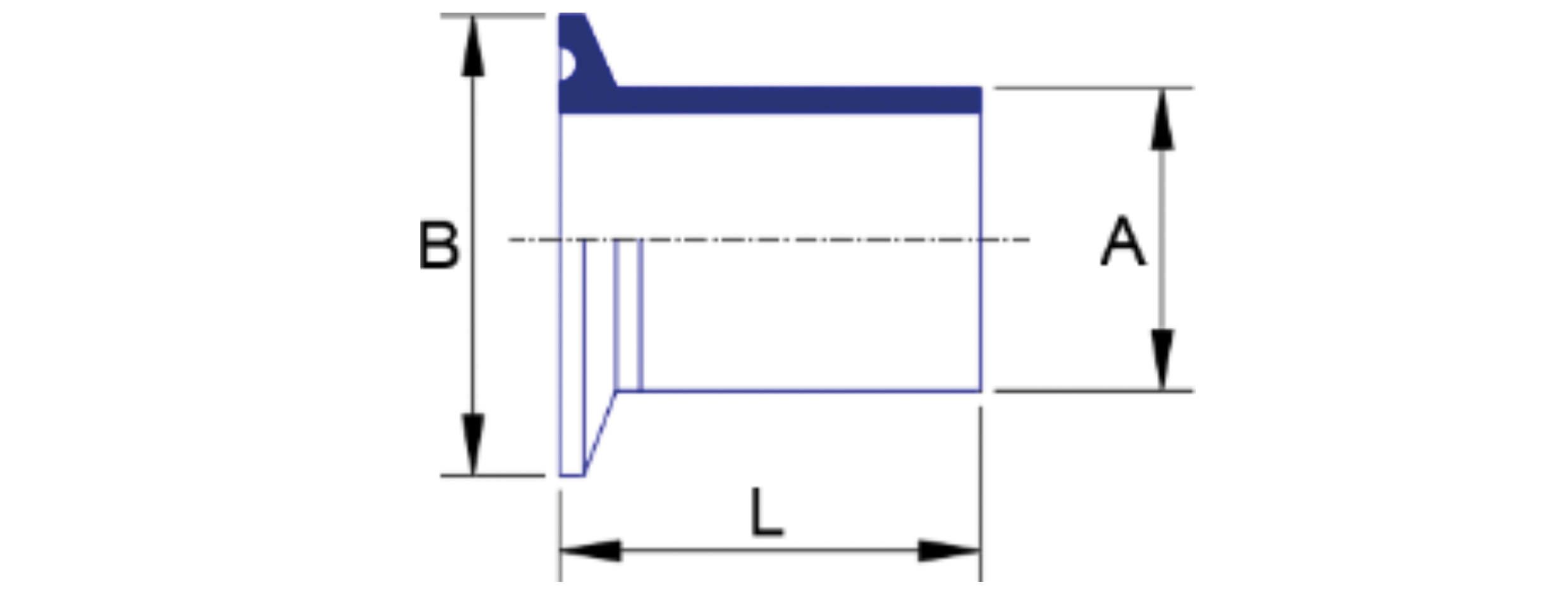

Full Product Range – Technical Information
| Size(A) | Size(B) | L | Part # | ||||
| inch | mm | inch | mm | inch | mm | SF1 | SF4 |
| 1/2 | 12.7 | 0.984 | 25.0 | 1.750 | 44.45 | FBP-011-8F0A1S-6205000 | FBP-014-8F0A4S-6205000 |
| 3/4 | 19.05 | 0.984 | 25.0 | 1.750 | 44.45 | FBP-011-8F0A1S-6207500 | FBP-014-8F0A4S-6207500 |
| 1 | 25.4 | 1.984 | 34.0 | 1.750 | 44.45 | FBP-011-8F0A1F-62100000 | FBP-014-8F0A4F-62100000 |
| 1.5 | 38.1 | 1.984 | 50.39 | 1.750 | 44.45 | FBP-011-8F0A1F-62150000 | FBP-014-8F0A4F-62150000 |
| 2 | 50.8 | 2.516 | 63.91 | 2.250 | 57.15 | FBP-011-8F0A1F-62200000 | FBP-014-8F0A4F-62200000 |
| 2.5 | 63.5 | 3.047 | 77.39 | 2.250 | 57.15 | FBP-011-8F0A1F-62250000 | FBP-014-8F0A4F-62250000 |
| 3 | 76.2 | 3.579 | 90.91 | 2.250 | 57.15 | FBP-011-8F0A1F-62300000 | FBP-014-8F0A4F-62300000 |
| 4 | 101.6 | 4.682 | 118.92 | 2.250 | 57.15 | FBP-011-8F0A1F-62400000 | FBP-014-8F0A4F-62400000 |
| 6 | 152.4 | 6.570 | 166.88 | 3.000 | 76.2 | FBP-011-8F0A1F-62600000 | FBP-014-8F0A4F-62600000 |
