TRU-PURE™ 90° Elbow Weld/Clamp End
The 90° Elbow Weld/Clamp End is a versatile process component engineered to accommodate both welding and clamping connections, offering flexibility for installation and maintenance in sanitary piping systems.
Designed to meet stringent ASME BPE standards, this elbow is suitable for applications requiring high levels of hygiene, such as in pharmaceutical and bioprocessing environments.

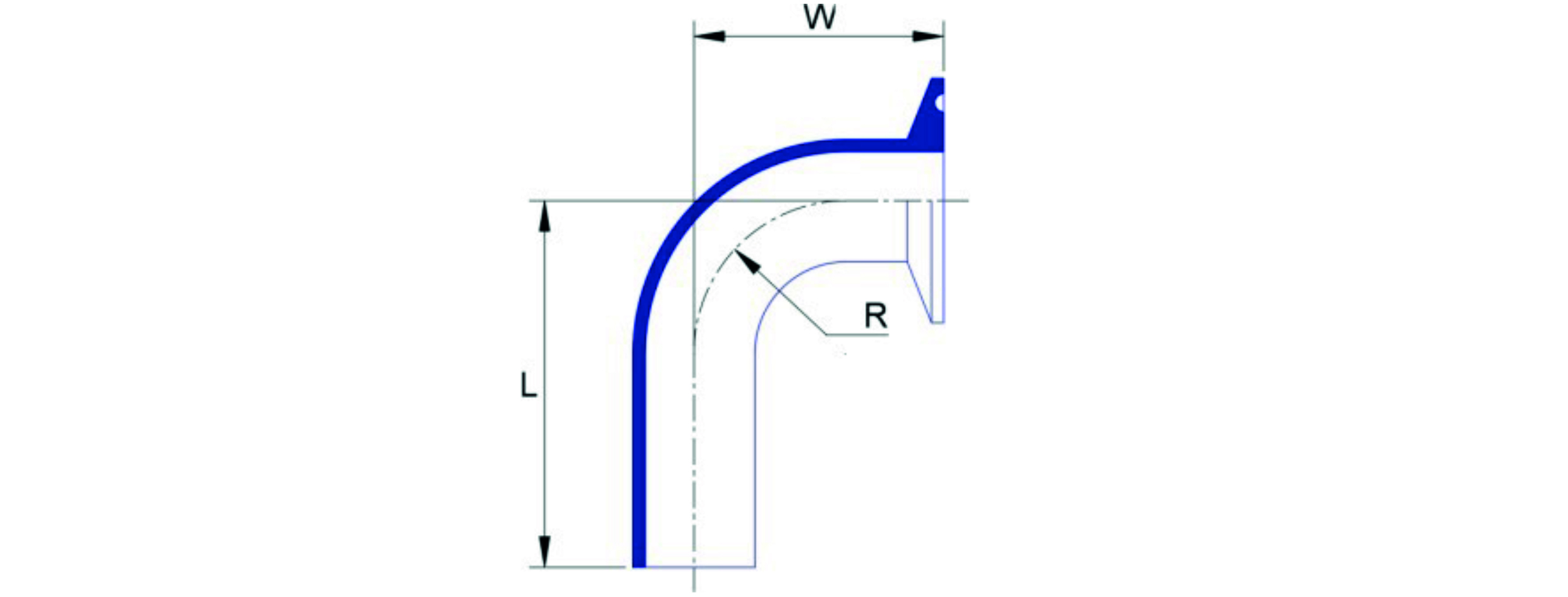

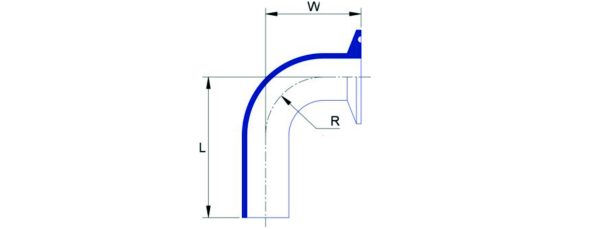

Full Product Range – Technical Information
| Size | L | W | R | Part # | ||
| inch | mm | mm | mm | mm | SF1 | SF4 |
| 1/2 | 12.7 | 76.20 | 41.28 | 28.58 | FBP-011-9E1C10-62050065 | FBP-014-9E1C40-62050065 |
| 3/4 | 19.05 | 76.20 | 41.28 | 28.58 | FBP-011-9E1C10-62075065 | FBP-014-9E1C40-62075065 |
| 1 | 25.4 | 76.20 | 50.80 | 38.10 | FBP-111-9E1C10-62100065 | FBP-114-9E1C40-62100065 |
| 1.5 | 38.1 | 95.25 | 69.85 | 57.15 | FBP-111-9E1C10-62150065 | FBP-114-9E1C40-62150065 |
| 2 | 50.8 | 120.65 | 88.90 | 76.20 | FBP-111-9E1C10-62200065 | FBP-114-9E1C40-62200065 |
| 2.5 | 63.5 | 139.70 | 107.95 | 95.25 | FBP-111-9E1C10-62250065 | FBP-114-9E1C40-62250065 |
| 3 | 76.2 | 158.75 | 127.00 | 114.30 | FBP-111-9E1C10-62300065 | FBP-114-9E1C40-62300065 |
| 4 | 101.6 | 203.20 | 168.28 | 152.40 | FBP-111-9E1C10-62400083 | FBP-114-9E1C40-62400083 |
| 6 | 152.4 | 292.10 | 266.70 | 228.60 | FBP-111-9E1C10-62600109 | FBP-114-9E1C40-62600109 |
