TRU-PURE™ 45° Elbow Weld Ends
The 45° Elbow Weld Ends are precision-fabricated components designed to provide directional change in high-purity process lines with minimal flow resistance.
Suitable for use in biotechnology, pharmaceutical, and other sanitary applications, the 45-degree design offers smoother flow transitions compared to sharper angles, helping to reduce potential areas of turbulence or contamination.

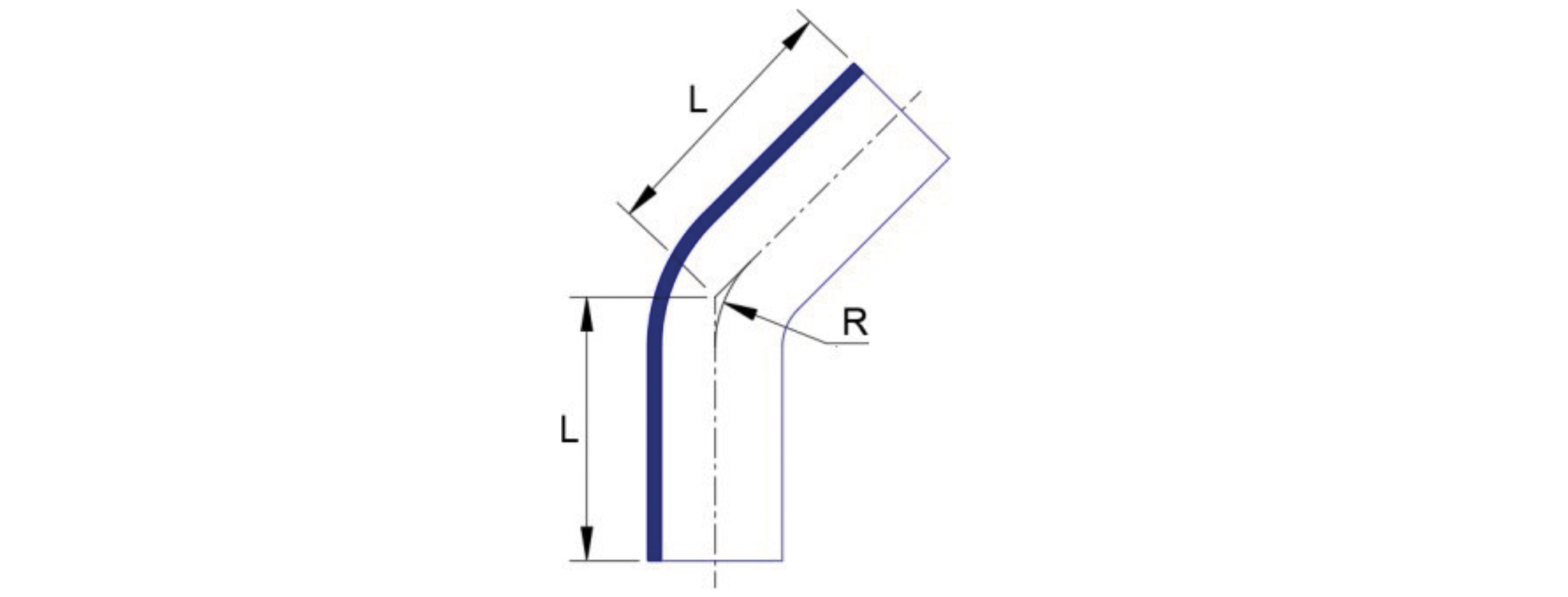

Full Product Range – Technical Information
| Size | L | R | Part # | |||
| inch | mm | inch | mm | mm | SF1 | SF4 |
| 1/2 | 12.7 | 2.25 | 57.15 | 28.58 | FBP-011-4E0010-62050065 | FBP-014-4E0040-62050065 |
| 3/4 | 19.05 | 2.25 | 57.15 | 28.58 | FBP-011-4E0010-62075065 | FBP-014-4E0040-62075065 |
| 1 | 25.4 | 2.25 | 57.15 | 38.10 | FBP-111-4E0010-62100065 | FBP-114-4E0040-62100065 |
| 1.5 | 38.1 | 2.5 | 63.50 | 57.15 | FBP-111-4E0010-62150065 | FBP-114-4E0040-62150065 |
| 2 | 50.8 | 3 | 76.20 | 76.20 | FBP-111-4E0010-62200065 | FBP-114-4E0040-62200065 |
| 2.5 | 63.5 | 3.375 | 85.73 | 95.25 | FBP-111-4E0010-62250065 | FBP-114-4E0040-62250065 |
| 3 | 76.2 | 3.625 | 92.08 | 114.30 | FBP-111-4E0010-62300065 | FBP-114-4E0040-62300065 |
| 4 | 101.6 | 4.5 | 114.30 | 152.40 | FBP-111-4E0010-62400083 | FBP-114-4E0040-62400083 |
| 6 | 152.4 | 6.25 | 158.75 | 228.60 | FBP-111-4E0010-62600109 | FBP-114-4E0040-62600109 |
