NHP BARREL NIPPLE TBE
Full Product Range – Technical Information

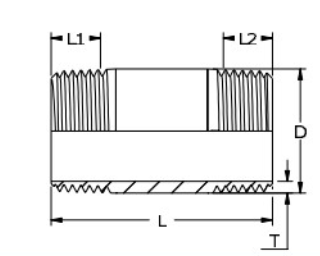

| DN | Dim. | L mm | L1, L2 ISO 7/1 R mm | D mm | T mm | Design Pressure Mpa | Weight kg/pce | Standard |
| 6 | 1/8″ | 40 | 6 | 10,2 | 2 | 10 | 0,02 | PED 2014/68/EU |
| 8 | 1/4″ | 40 | 9 | 13,5 | 2,3 | 10 | 0,02 | PED 2014/68/EU |
| 10 | 3/8″ | 40 | 9 | 17,2 | 2,3 | 10 | 0,03 | PED 2014/68/EU |
| 15 | 1/2″ | 60 | 12 | 21,3 | 2,6 | 10 | 0,07 | PED 2014/68/EU |
| 20 | 3/4″ | 60 | 13 | 26,9 | 2,6 | 10 | 0,07 | PED 2014/68/EU |
| 25 | 1″ | 60 | 15 | 33,7 | 3,2 | 10 | 0,12 | PED 2014/68/EU |
| 32 | 1 1/4″ | 80 | 17 | 42,4 | 3,2 | 6,4 | 0,21 | PED 2014/68/EU |
| 40 | 1 1/2″ | 80 | 17 | 48,3 | 3,2 | 6,4 | 0,24 | PED 2014/68/EU |
| 50 | 2″ | 100 | 22 | 60,3 | 3,6 | 6,4 | 0,42 | PED 2014/68/EU |
| 65 | 2 1/2″ | 100 | 24 | 76,1 | 3,6 | 4 | 0,53 | PED 2014/68/EU |
| 80 | 3″ | 120 | 27 | 88,9 | 4 | 4 | 0,76 | PED 2014/68/EU |
| 100 | 4″ | 150 | 33 | 114,3 | 4 | 4 | 1,30 | PED 2014/68/EU |
